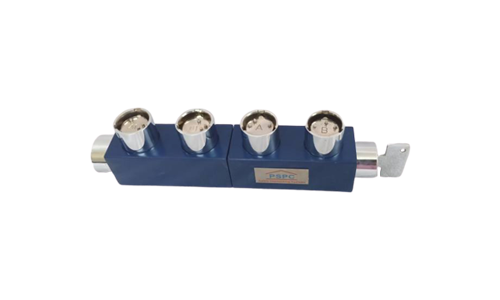

This unique modular key exchange system enables additional key exchanges positions to be added at will. The basic starter exchange module enables the control key to be released by the insertion of only two secondary (access) keys. The number of secondary keys is increased by simply adding double (or single) lock extension units as required to the started module unit.
When control key trapped position, all the Front lock keys can be released from theKey exchange box and vice versa.
MODEL | MATERIAL | FINISH |
---|---|---|
ILX – 2## | ALUMINIUM / BRASS | HOUSING : ALUMINIUM -POWDER COATED LOCK BODY : BRASS - UNPLATED |
ILX – 2##N | ALUMINIUM / BRASS | HOUSING : ALUMINIUM -POWDER COATED LOCK BODY : BRASS - NICKEL PLATED |
ISX - 2#SS | ALUMINIUM / STAINLESS STEEL | HOUSING : ALUMINIUM -POWDER COATED LOCK BODY : STAINLESS STEEL - MIRROR FINISH |
MODEL | KEY ROTATION | NO. OF FRONT LOCK | NO. OF CONTROL LOCK |
---|---|---|---|
ILX-212 / ISX-212 | CW | 2 | 1 |
ILX-202 / ISX-202 | CW | 2 | 0 |
ISX-201 / ISX-201 | CW | 1 | 0 |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILX-212-P-N-CW-0: Modular Key exchange system. pin type, Brass, Nickel Plated, 2NO Front locks 1 control lock, clockwise, without flip cap.
For use within or between systems, for sequencing or supervisory control, this is the simplest of our key exchanges for many interlocking solutions.
LEFT HAND KEY POSITION | RIGHT HAND KEY POSITION |
---|---|
KEY IN RELEASED POSITION | KEY IS IN TRAPPED POSITION |
KEY IS IN TRAPPED POSITION | KEY IN RELEASED POSITION |
MODEL | MATERIAL | FINISH |
---|---|---|

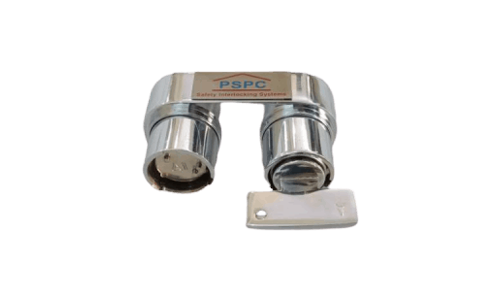

ILX-1 | BRASS | UNPLATED BRASS |
ILX – 1 N | BRASS | NICKEL PLATED |
ISX-1 | STAINLESS STEEL | MIRROR FINISH |
MODEL | KEY ROTATION |
---|---|
ILX – 1 | CW |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : ILX-1-P-N-CW-0: Two Key Exchange Panel, pin type, Brass, Nickel Plated, clockwise, without flip cap.

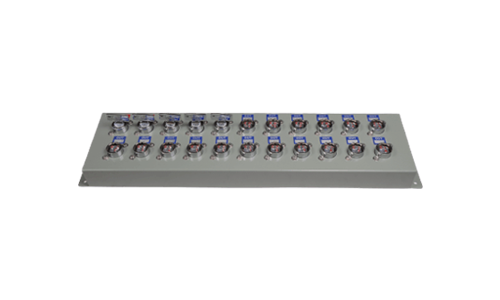

Key Exchange Boxes (KEB) are used in Key Transfer applications. One or several Keys are trapped in the KEB to release the desired key or keys. For example, in a typical application to isolate several live connections for maintenance, the access door keys are released only when the key of the switches are trapped in the KEB. The KEB can be designed to have more than one control key, which is trapped in the KEB to release other keys simultaneously or sequentially. In the X-type KEB, the control lock(s) is/are on top of the box, and multiple rows of locks as required are provided.
KEB CONTROL KEYS | KEB FRONT KEYS |
---|---|
TRAPPED | ALL THE KEYS RELEASED |
RELEASED | ALL THE KEYS TRAPPED |
ENCLOSURE | INTERLOCKS |
---|---|
MS POWDER COATED | BRASS (UNPLATED/NICKEL PLATED) /STAINLESS STEEL |
STAINLESS STEEL | STAINLESS STEEL |
MODEL | KEY ROTATION | CONTROL LOCK | SECONDARY LOCK |
---|---|---|---|
KEB X | CW/ACW | NO. OF CONTROL LOCKS | NO. OF SECONDARY LOCKS |
KEB TYPE – X | |||||
---|---|---|---|---|---|
NO. OF FRONT LOCKS | DIMN – A | DIMN – B | |||
6 | 260 | 235 | |||
8 | 320 | 295 | |||
10 | 380 | 355 | |||
12 | 440 | 415 | |||
14 | 500 | 475 | |||
16 | 560 | 535 | |||
18 | 620 | 595 | |||
20 | 680 | 655 | |||
22 | 740 | 715 | |||
24 | 800 | 775 |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : KEB X-P-N-CW-1C-5F-0: Key Exchange Box, pin type, Brass, Nickel Plated, clockwise,1NO control lock and 5NOS Front locks, without flip cap.
Key Exchange Boxes (KEB) are used in Key Transfer applications. One or several Keys are trapped in the KEB to release the desired key or keys. For example, in a typical application to isolate several live connections for maintenance, the access door keys are released, only when the key of the switches are trapped in the KEB. The KEB can be designed to have more than one control key, which is trapped in the KEB to release other keys simultaneously or sequentially.

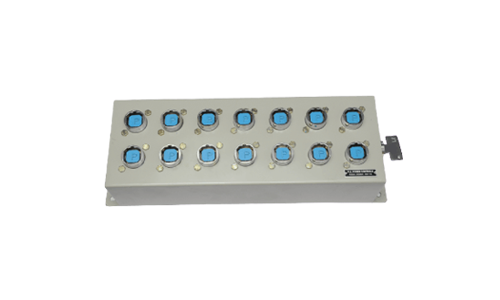

In the Y-type KEB the control lock is on the side of the box.
KEB CONTROL KEYS | KEB FRONT KEYS |
---|---|
TRAPPED | ALL THE KEYS RELEASED |
RELEASED | ALL THE KEYS TRAPPED |
ENCLOSURE | INTERLOCKS |
---|---|
MS POWDER COATED | BRASS (UNPLATED/NICKEL PLATED) /STAINLESS STEEL |
STAINLESS STEEL | STAINLESS STEEL |
MODEL | KEY ROTATION | CONTROL LOCK | SECONDARY LOCK |
---|---|---|---|
KEB X | CW/ACW | NO. OF CONTROL LOCKS | NO. OF SECONDARY LOCKS |
KEB TYPE – Y | |||||
---|---|---|---|---|---|
NO. OF FRONT LOCKS | DIMN – A | DIMN – B | |||
6 | 260 | 235 | |||
8 | 320 | 295 | |||
10 | 380 | 355 | |||
12 | 440 | 415 | |||
14 | 500 | 475 | |||
16 | 560 | 535 |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : KEB Y-P-N-CW-1C-5F-0: Key Exchange Box, pin type, Brass, Nickel Plated, clockwise,1NO control lock and 5NOS Front locks, without flip cap.

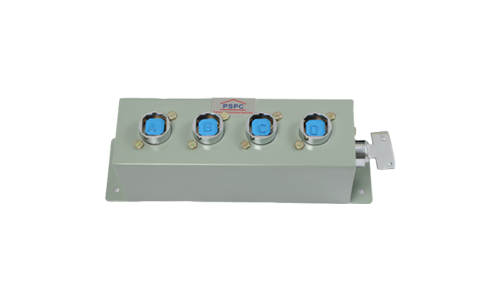

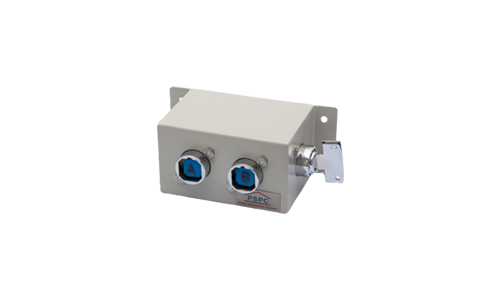

Z type key exchange boxes are single row key exchanges box with a single control lock and key on the side.
KEB CONTROL KEYS | KEB FRONT KEYS |
---|---|
TRAPPED | ALL THE KEYS RELEASED |
RELEASED | ALL THE KEYS TRAPPED |
MODEL | MATERIAL | FINISH | ||
---|---|---|---|---|
KEB | KED WITH LOCK UNPLATED | KEB SHEET METAL | CRCA SHEET | POWDER COATED |
LOCK PORTION | BRASS | UNPLATED BRASS | ||
KEB WITH LOCK PLATED | KEB SHEET METAL | CRCA SHEET | UN POWDER COATED | |
LOCK PORTION | BRASS | NICKEL PLATED | ||
KEB (STAINLESS STEEL | KEB SHEET METAL | STAINLESS STEEL | MIRROR FINISH POLISHED | |
LOCK PORTION | STAINLESS STEEL | MIRROR FINISH POLISHED |
MODEL | KEY ROTATION | CONTROL KEY | FRONT LOCK |
---|---|---|---|
KEB X | CW/ACW | CODE | NO. OF FRONT KEYS & CODE |
KEB TYPE – Z | |||||
---|---|---|---|---|---|
NO. OF FRONT LOCKS | DIMN – A | DIMN – B | |||
2 | 200 | 175 | |||
3 | 260 | 235 | |||
4 | 320 | 295 | |||
5 | 380 | 355 | |||
6 | 440 | 415 | |||
7 | 500 | 575 |
Associated Keys : ILK-100, ILK-200, ILK-300
Dust Cap : ILM-100
Example : KEB Z-P-N-C1-F4-CW-SS-0 : single row Key Exchange Box, pin type, lock portion Brass, Nickel Plated, clockwise,1NO control lock and 4NOS Front locks, stainless enclosure polished, without flip cap.
